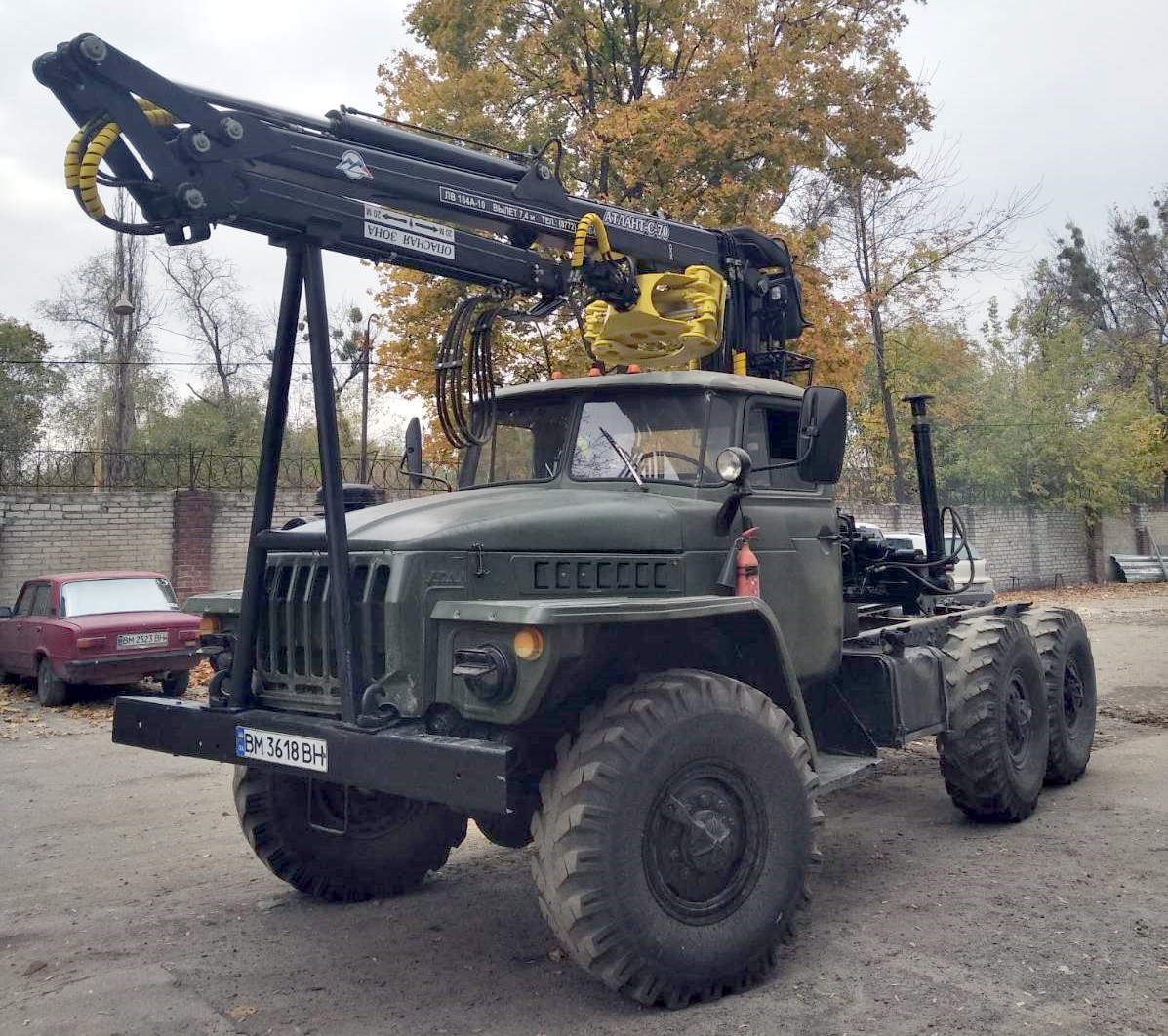

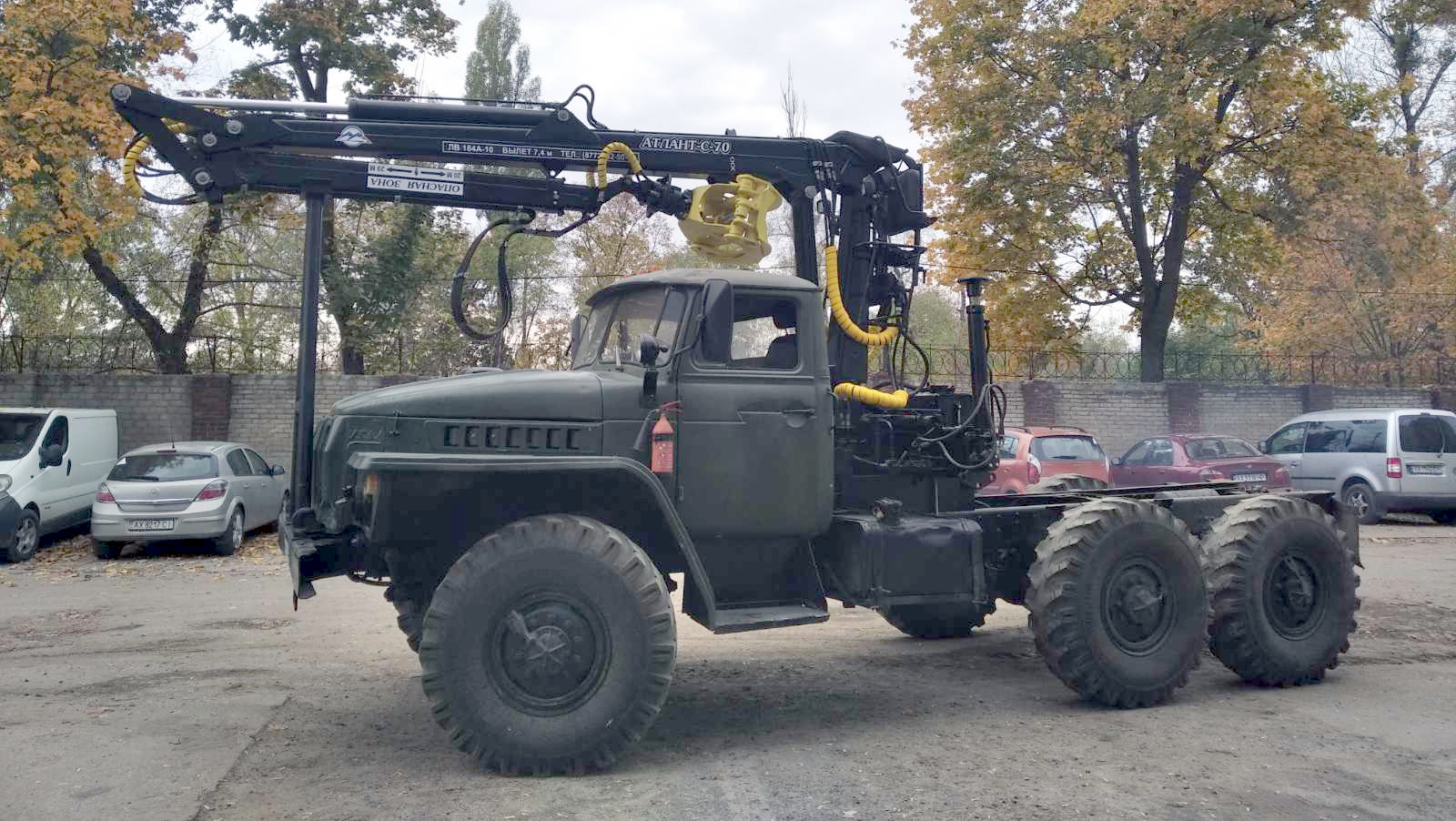

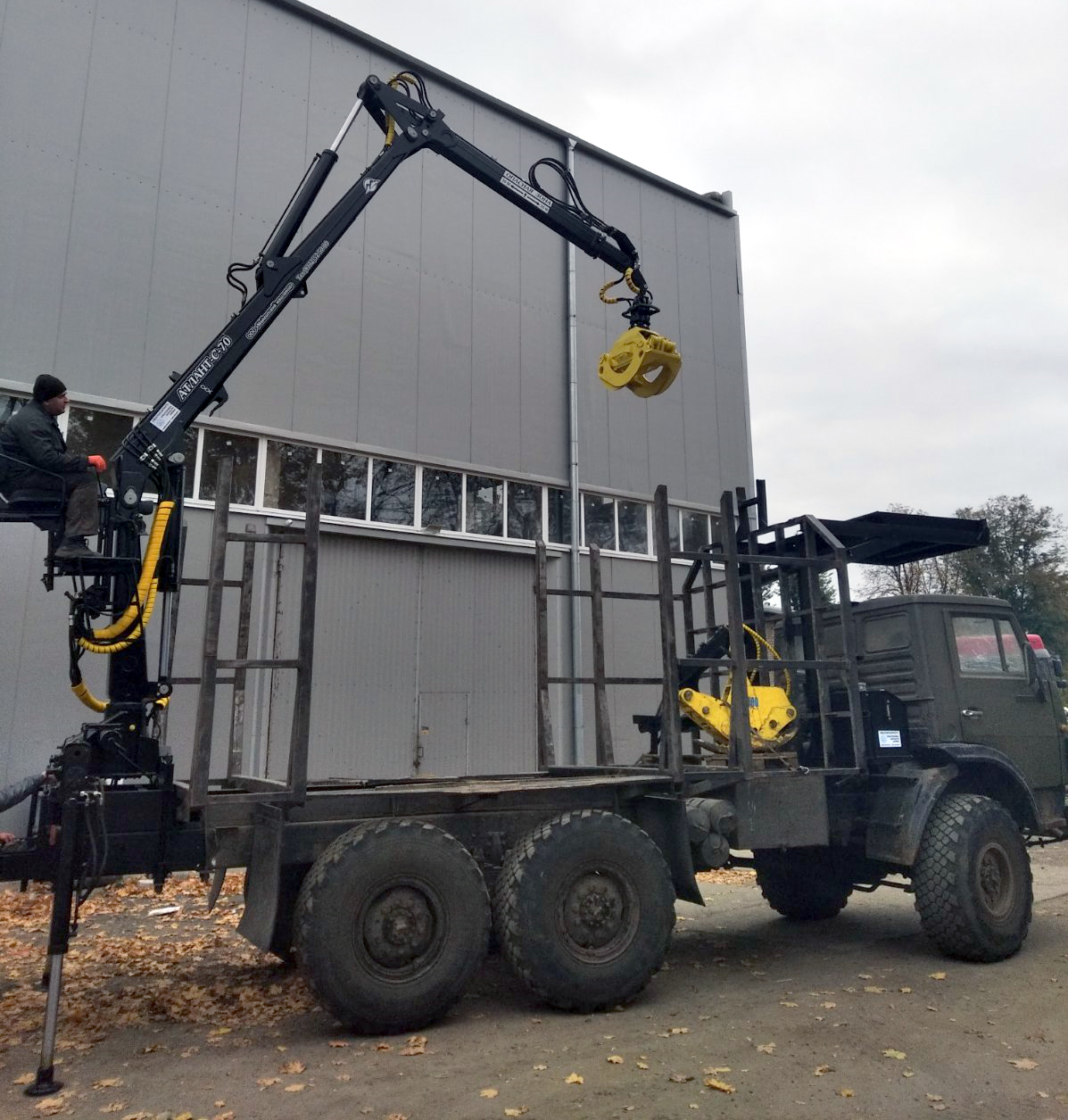

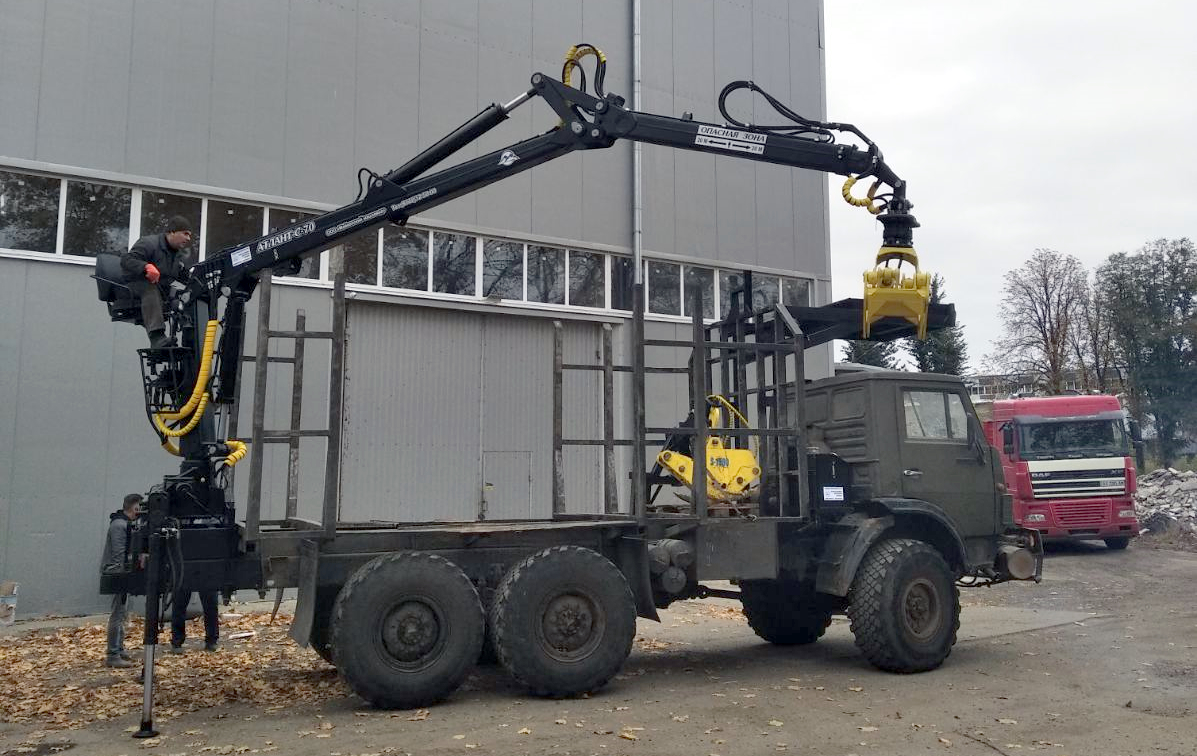

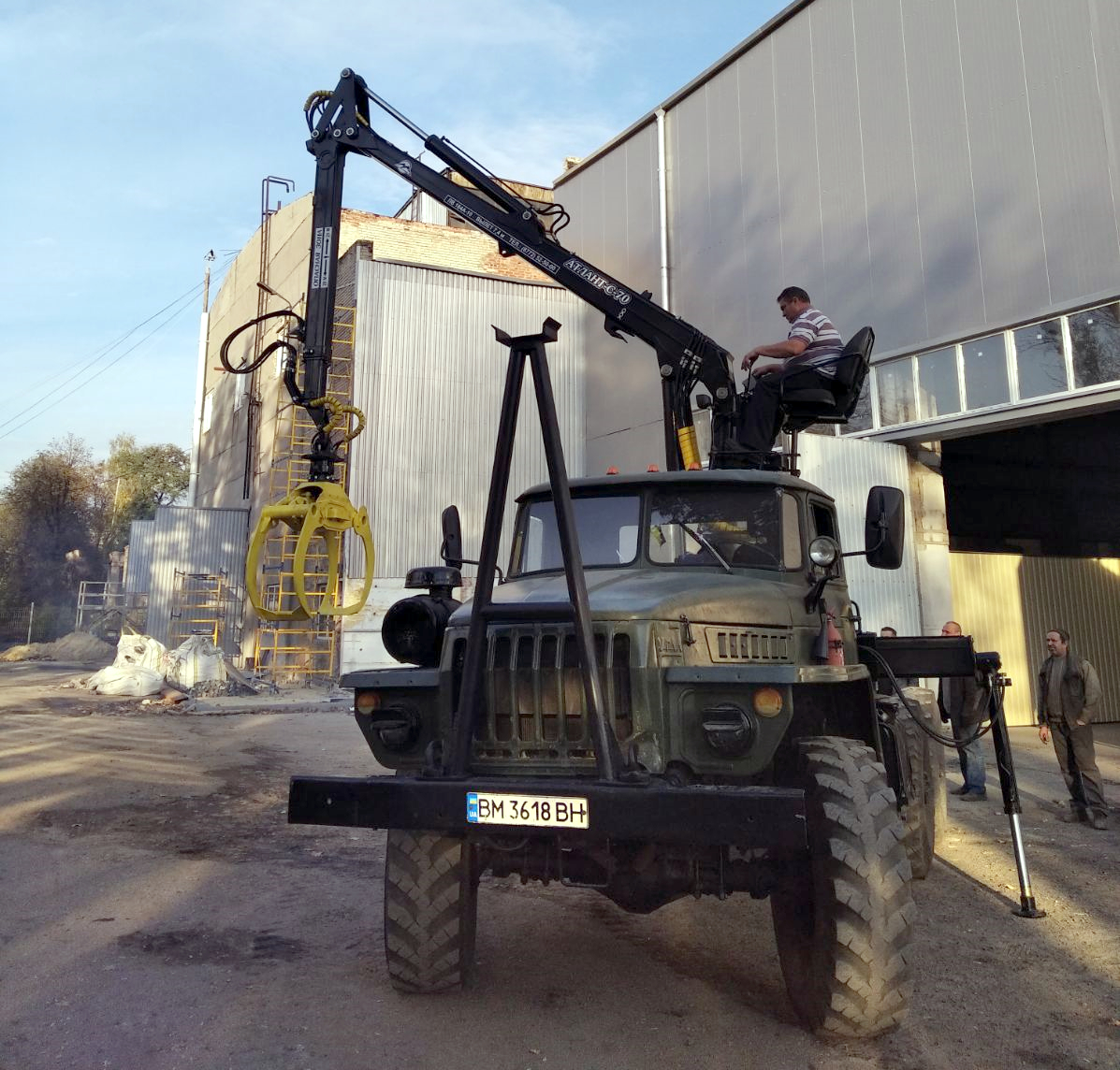

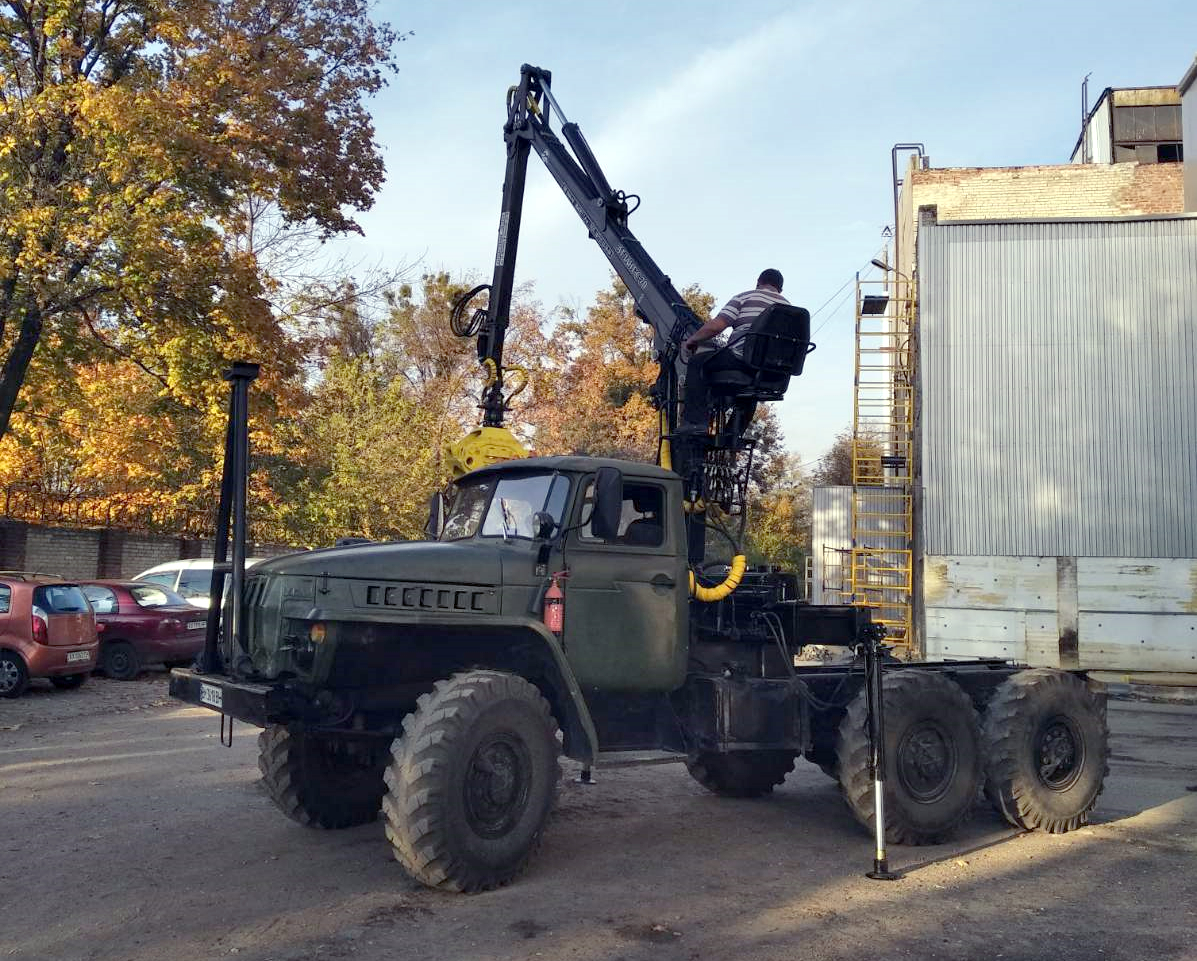

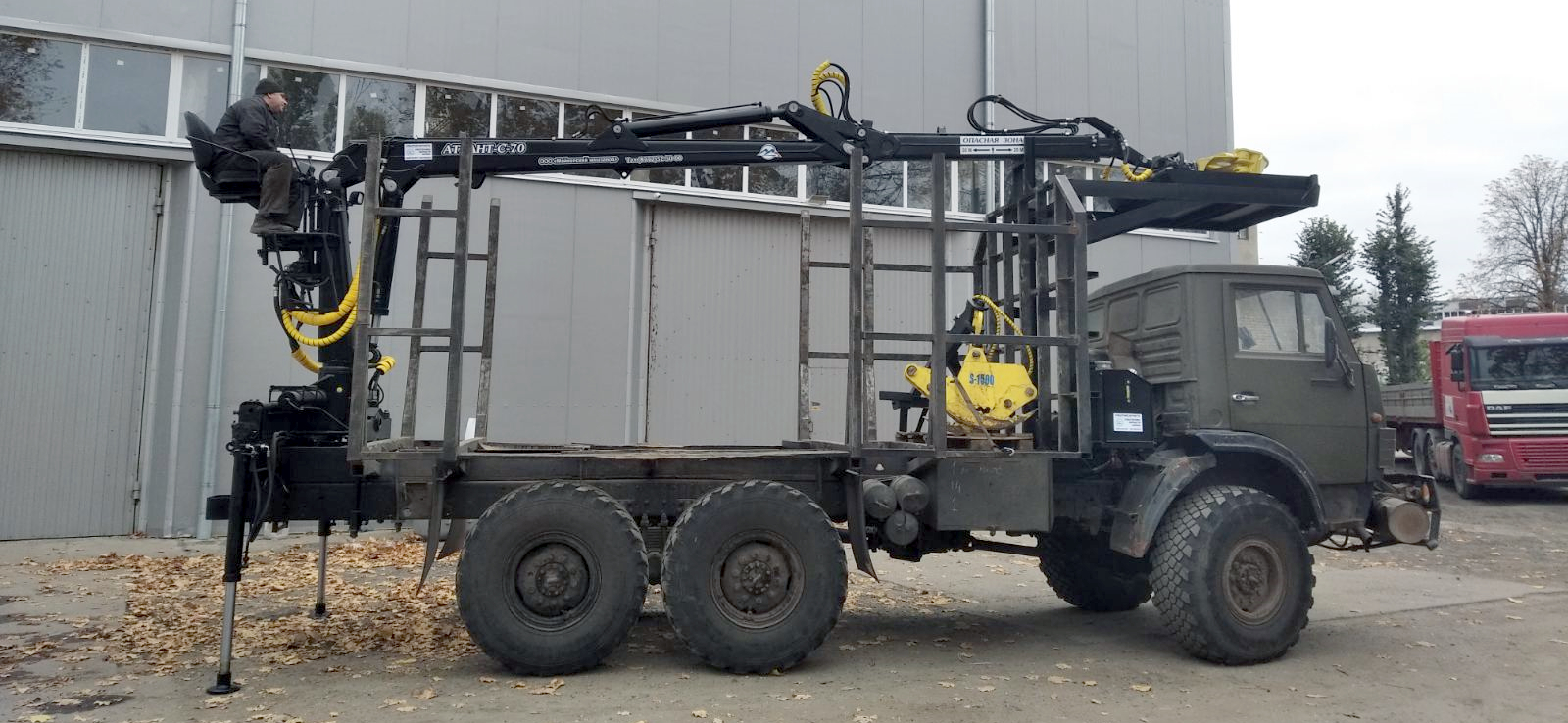

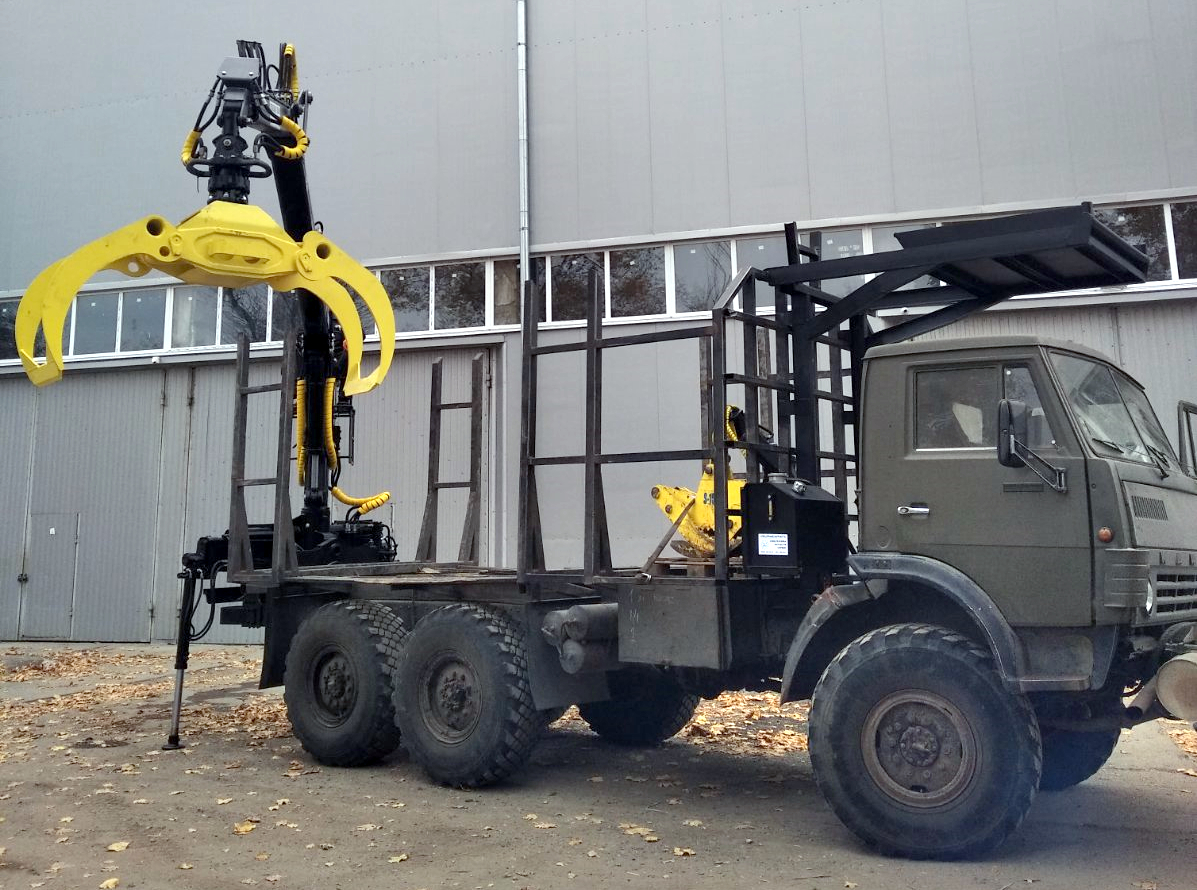

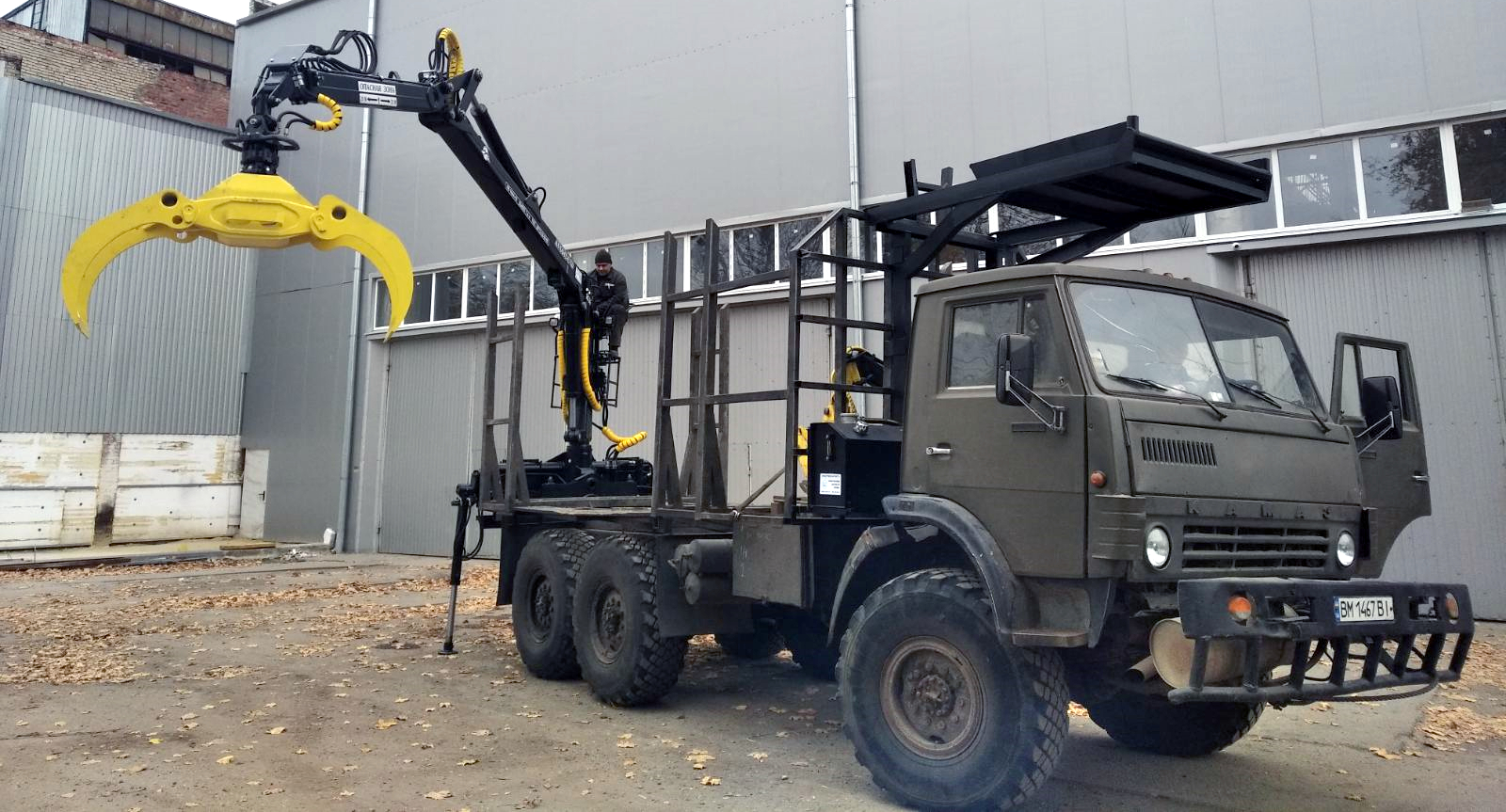

The ЛВ-184А-10 hydraulic manipulator is designed to perform loading and unloading operations in the forestry and woodworking industry (handling shortwood, tree-length logs, etc.) and in other branches of the economy. The hydraulic manipulator can be used as process equipment installed on the chassis of vehicles behind the cab or at the end of the frame as part of a road train.
Compared with its counterparts, the ЛВ 184А-10 hydraulic manipulator has a greater reach, a lower weight and a shorter working cycle, i.e. a higher speed of loading and unloading operations.
Design features
- The ЛВ 184А-10 has high reliability and maintainability and is equipped with hydraulics from leading global manufacturers in Sweden, Italy and Finland.
- The hydraulic manipulator can be equipped with a variable load moment, which makes it possible to increase the productivity of loading and unloading operations by a factor of 1.6. The greatest effect is achieved when working with loads whose masses differ significantly from one another. In this case, the load moment changes automatically due to a change in the leverage of the boom-lift hydraulic cylinder.
| Atlant ЛВ-184 | |
|---|---|
| Lifting moment, t·m | 7,0 |

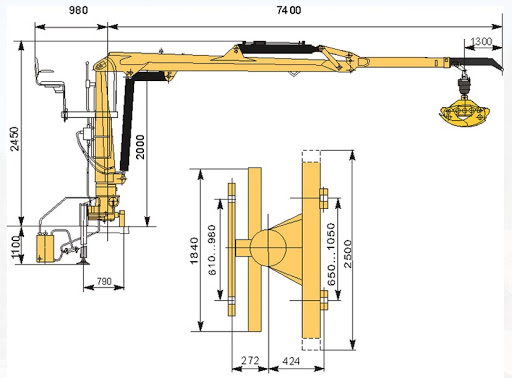

| Maximum reach, m | 7,4 |

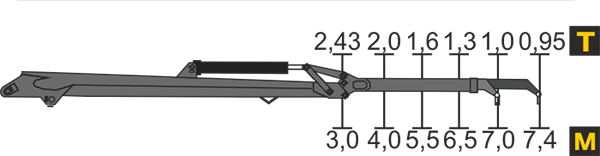

| Load capacity at maximum reach, t | 0,95 |
| Maximum load capacity at 3.0 m reach, t | 2,43 |
| Rotation angle, degrees | 400 |
| Maximum torque of the rotation mechanism, t·m | 1,4 |
| Distance between extension outriggers (base) within, m | 3,8…3,9 |
| Weight without rotator and grapple, kg | 1470 |
| Cross-sectional area of the grapple with jaw tips closed, m² | 0,35 |
| Weight of forestry grapple (0.35 m²) with rotator, kg | 240 |
